Origin of Reaction Injection Molding
Reaction injection molding (RIM), an industrial molding process.This molding process has a chemical reaction of an injection molding method, the raw materials used in this method is not a polymer, but two or more liquid monomers or prepolymers, to a certain proportion were added to the mixing head, mixed under pressure, immediately injected into the closed mold, polymerization and curing in the mold, shaped into products. Because the raw materials used are liquid, with less pressure that can quickly fill the mold cavity, so reduce the clamping force and mold cost, especially suitable for the production of large-area parts.
The origins of Reaction Injection Molding can be traced back to the mid-20th century. One of the earliest mentions of the process dates back to the 1950s when Bayer AG, a German chemical and pharmaceutical company, began experimenting with the use of polyurethane materials for creating various products. Polyurethanes are formed by reacting polyols (alcohol-based compounds with multiple hydroxyl groups) with isocyanates (compounds containing reactive N=C=O groups).
The actual term "Reaction Injection Molding" might have gained prominence later on, likely in the 1960s or 1970s, as the process started to become more refined and used for commercial applications. RIM gained popularity due to its ability to produce parts that were lightweight, strong, and had excellent design flexibility. Unlike traditional injection molding, which involves melting solid plastic and injecting it into a mold, RIM involves injecting liquid precursors that react and cure within the mold.
RIM technology allowed for the creation of parts with varying physical properties, such as rigid or flexible sections within the same part, which was a significant advantage over traditional injection molding. This made it particularly useful in industries such as automotive, aerospace, electronics, and consumer goods.
Over time, RIM technology has continued to evolve, with improvements in material formulations, equipment, and processing techniques. Until now，RIM remains an important manufacturing method for producing a wide range of plastic parts, especially those requiring complex geometries and specialized properties.
Working Principle of reaction injection molding(RIM)

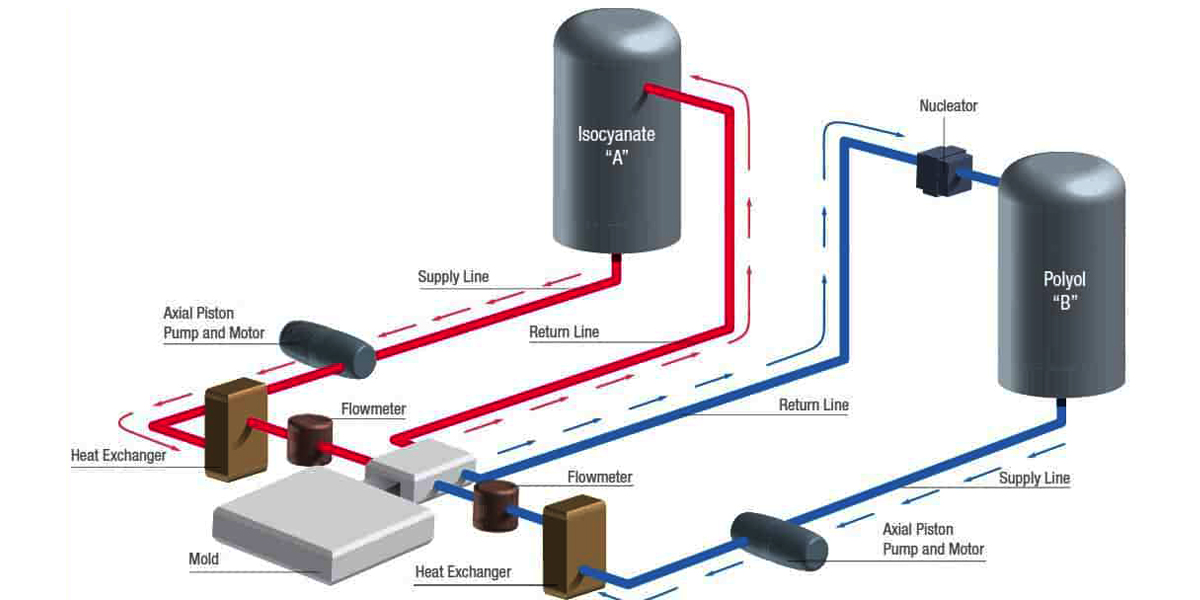

The working principle of Reaction Injection Molding (RIM) involves the mixing and reaction of two liquid components, typically polyols and isocyanates, to create a polymer that solidifies within a mold to form the desired plastic part.
Preparation of Materials: The two liquid components, polyols and isocyanates, are stored in separate containers. These components are chosen based on the desired properties of the final plastic part, such as strength, flexibility, and other characteristics.
Mixing: The polyols and isocyanates are precisely measured and mixed together in a controlled ratio. The mixing process can occur through various methods, including impingement mixing or dynamic mixing, depending on the specific equipment used.
Injection: Once the two components are mixed, the resulting reactive liquid mixture is injected into a mold at relatively low pressure compared to traditional injection molding. The mold is typically made from two halves that come together to create a cavity in the shape of the desired part.
Chemical Reaction: Inside the mold, the mixed polyols and isocyanates undergo a chemical reaction known as polymerization or crosslinking. This reaction leads to the formation of a polymer network that solidifies and takes on the shape of the mold cavity.
Curing and Solidification: As the reaction progresses, the polymer network continues to form and solidify, creating a rigid or flexible plastic part depending on the material formulation and process parameters. The reaction generates heat, which aids in speeding up the curing process.
Ejection: Once the polymer has sufficiently solidified, the mold is opened, and the finished plastic part is ejected. The part may require some post-processing steps, such as trimming excess material or surface finishing, depending on the specific application.
Key Advantages of Reaction Injection Molding:
Complex Geometries: RIM allows for the production of parts with intricate and complex shapes that might be difficult or impossible to achieve using traditional injection molding.
Design Flexibility: RIM can produce parts with varying material properties within the same part, such as rigid and flexible sections, in a single molding process.
Low Pressure: The injection process involves lower pressures compared to traditional injection molding, making it suitable for molds that are less robust and more cost-effective to manufacture.
Strong and Lightweight Parts: RIM parts can have excellent strength-to-weight ratios, making them suitable for applications where both strength and weight are critical factors.
Reduced Tooling Costs: The lower pressures involved in RIM can lead to longer mold life and reduced wear on molds, contributing to potential cost savings in tooling maintenance.
Disadvantage
While Reaction Injection Molding (RIM) offers numerous advantages, it also comes with certain disadvantages and limitations.
Material Limitations: RIM is primarily used with polyurethane-based materials, which might not be suitable for all applications. Other plastic materials with specific properties or characteristics might not be compatible with the RIM process.
Material Costs: The polyols and isocyanates used in RIM can be expensive, particularly if specialized formulations are required to meet specific performance criteria. This can contribute to higher material costs compared to other manufacturing processes.
Reaction Control: The chemical reaction that takes place during RIM is time-sensitive. Proper control of the mixing and injection process is crucial to ensure consistent part quality. Deviations in reaction time or mixing ratios can lead to variations in part properties and dimensions.
Cycle Time: RIM parts typically require longer cycle times compared to traditional injection molding due to the time needed for the chemical reaction and curing process to complete. This might limit the production rate and throughput, especially for high-volume manufacturing.
Surface Finish: The surface finish of RIM parts might not be as smooth or detailed as those produced using other methods like traditional injection molding or machining. Additional finishing processes might be required to achieve the desired appearance and texture.
Reaction Injection Molding (RIM) mold and product design

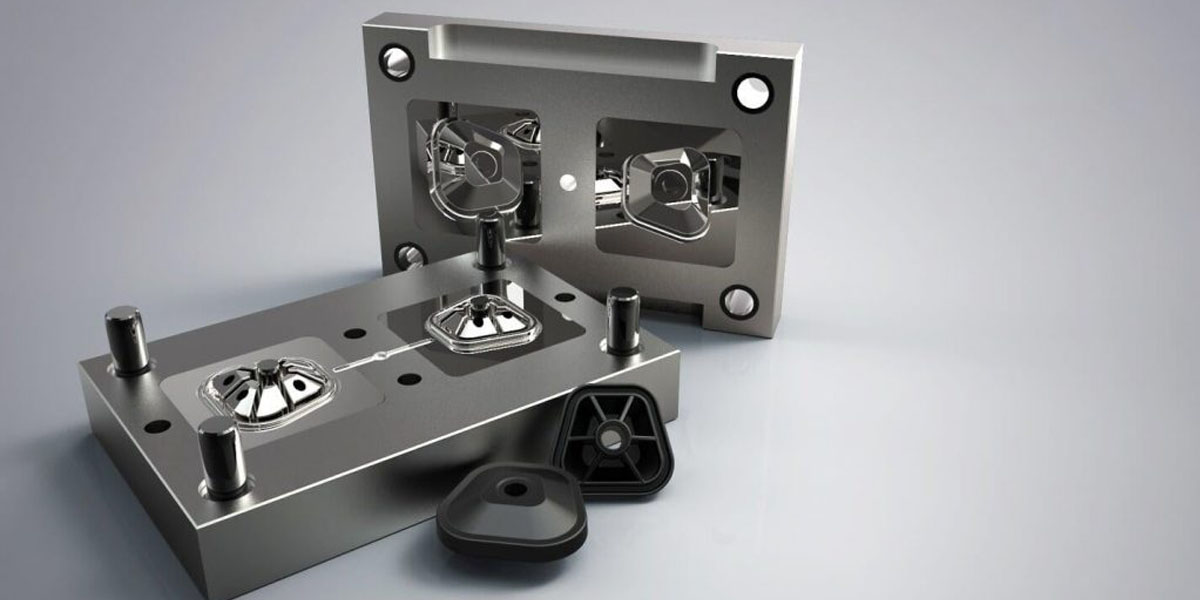

1.Mold design
(1) casting system. The pouring system, also known as "injection system", consists of gate, runner and vent. In the RIM mold design, the shape and height of the gate depends on the wall thickness of the molded product and cavity flow. Straight bar gates are usually preferred for large capacity molds, while fan-shaped gates are preferred for small capacity molds. The location of the main runner should be directly on the mold, but care should be taken to ensure that the material enters the cavity at the lowest point in the cross-section of the product when determining the location of the runner. The location of the exhaust hole should be located in the end of the material flow, so that the injection of air out of the cavity.
(2) mold temperature control system. Here only to RIM metal mold as an example to explain. Mold temperature control method is usually buried in the mold casing, through the water for heating or cooling. The thickness of the metal mold should be 50mn and casing spacing should be different depending on the processing resin. Usually, the polyurethane cool RIM mold temperature of 40 ~ 80C, mold temperature control accuracy of Shi 4C, preferably Shi 1C. casing spacing of 80 ~ 100mm cooling holes and mold cavity wall distance between the cavity should be 9.5mm.
(3) parting surface. The location of the parting surface set up a general requirement, that is, the location of the parting surface is located in the vicinity of the contour of the workpiece slightly below, so that the material is expanding and filling the cavity of the cavity will be the cavity of the residual air discharged to the outside of the mold.
2. Product design
(1) Product thickness. The same as conventional injection products, in the wall thickness design of RIM products, the same wall thickness should be avoided too thick or too thin. Polyurethane cool foam RIM products, for example, the conventional wall thickness should be controlled at 6.35 ~ 12.7m, when the wall thickness is greater than 12.7mm or less than 3.17mm, it should take appropriate remedial measures.
(2) reinforcement. The purpose of using reinforcing bars is to improve the rigidity and strength of products selected thick and short reinforcing bars. Reinforcement should be set along the material flow is appropriate.
Should choose thin and long reinforcement, avoid so will not affect the flow of materials in the process of
The gas emission in the process of material flow.
(3) demolding slope, RIM products demolding slope should be selected 2. Too large or too small are not conducive to the product demolding
(4) rounded corners, RIM products shall not be less than 3.175m internal rounded corner radius external rounded corner radius shall not be less than 1.578mm
(5) Bump. The cam shall adopt 2.The demolding slope and along the periphery of the product or the inner rib arrangement, if the design height of the camber exceeds 6.57mm, it must be supplemented by the support plate. In the imported hole molding, must accurately determine the location of the positioning threads and self-tapping threads the dimensions of the tab and imported hole for the release of the strength of the great influence, should be noted.
In which industries is the process commonly used to produce which parts?

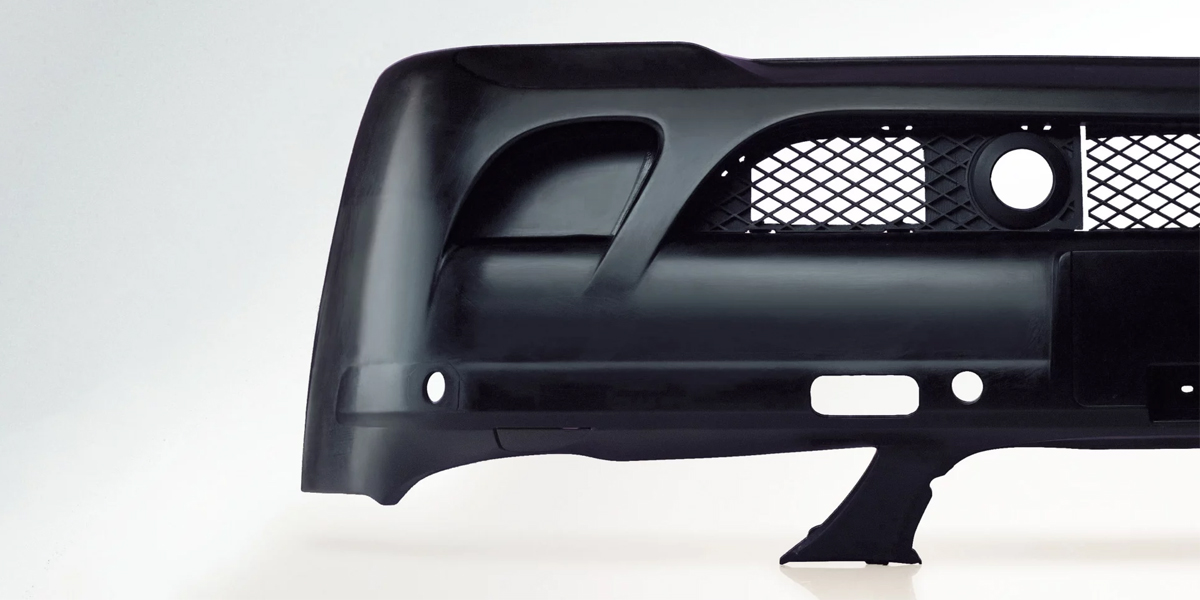

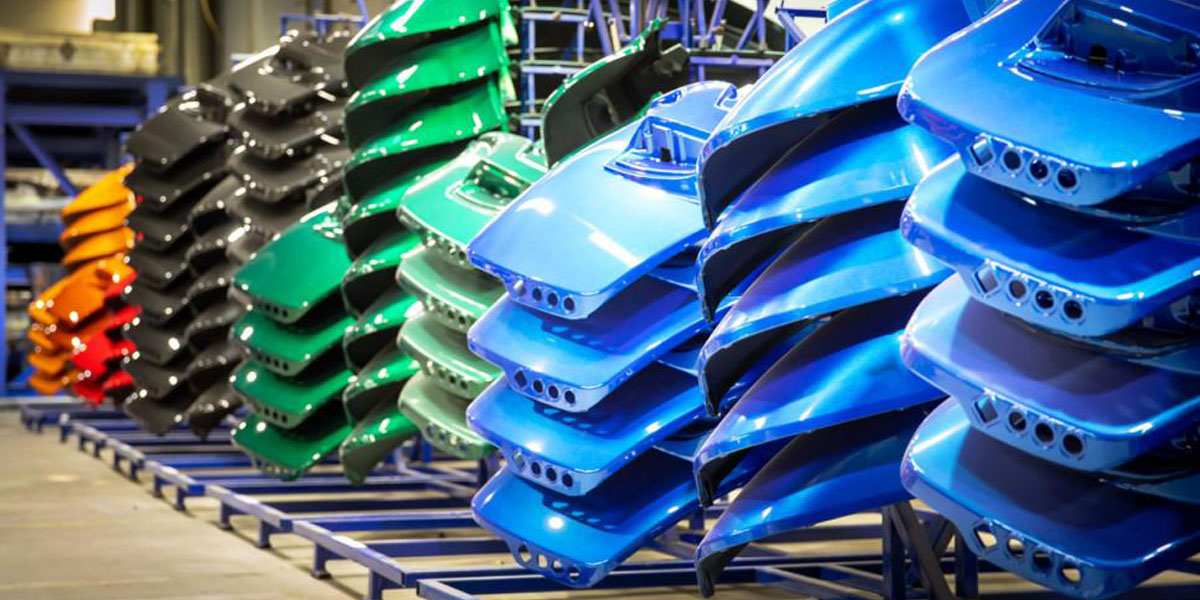

Bumpers: RIM is used to produce lightweight, durable, and impact-resistant bumpers.
Interior Trim: Components like dashboard panels, door panels, and armrests can be manufactured using RIM for their aesthetic and functional properties.
Air Intake Manifolds: RIM can create complex geometries with smooth airflow passages, making it suitable for producing air intake components.
Interior Components: RIM is utilized for producing interior parts like seat components, cabin panels, and tray tables.
Housings: Complex housings for various aircraft systems, which need to be lightweight yet structurally sound, can be manufactured using RIM.
Casing and Enclosures: RIM can produce casings for electronic devices such as laptops, printers, and televisions.
Server Rack Components: Parts like bezels, handles, and brackets for server racks can be manufactured using RIM.
Furniture: RIM is used to create components for furniture, including chairs, tables, and decorative panels.
Sporting Equipment: Parts of sporting goods like helmets, protective padding, and equipment housings can be produced using RIM.
Medical Device Housings: RIM can create medical equipment housings and covers that need to be both sterile and durable.
Wheelchair Components: Certain components of wheelchairs and mobility aids can be manufactured using RIM.
Industrial Equipment Industry:
Machine Covers: Protective covers for machinery and equipment can be produced using RIM to provide both impact resistance and protection against environmental elements.
Housings for Industrial Tools: RIM is used to create housings for tools and equipment used in industrial settings.
Marine Industry:
Boat Components: RIM is employed to produce various components for boats, such as hulls, decks, and interior panels, due to its ability to create lightweight and corrosion-resistant parts.
Renewable Energy Industry:
Wind Turbine Parts: RIM can manufacture components for wind turbine blades, nacelles, and other structural elements.
Construction Industry:
Architectural Elements: RIM is used to produce architectural details, decorative elements, and exterior cladding for buildings.
These are just a few examples, and the applications of RIM can extend beyond these industries.
List of materials that can be applied
Reaction Injection Molding (RIM) primarily involves the use of polyurethane-based materials. These materials consist of polyols and isocyanates that react to form polymers with a wide range of properties. Here are some types of polyurethane-based materials commonly used in RIM, along with their characteristics and applications:
Flexible Polyurethane Foam:
Characteristics: Soft, flexible, cushioning, good impact absorption.
Applications: Automotive seats, furniture cushions, padding in medical devices, packaging materials.
Rigid Polyurethane Foam:
Characteristics: Lightweight, rigid, good thermal insulation.
Applications: Insulation panels, structural components in appliances, lightweight vehicle components.
Structural Foam Polyurethane:
Characteristics: High strength-to-weight ratio, structural integrity.
Applications: Structural components in automotive, electronics, and industrial equipment.
Elastomeric Polyurethane:
Characteristics: High elasticity, durability, abrasion resistance.
Applications: Gaskets, seals, O-rings, industrial wheels, rollers.
Thermoplastic Polyurethane (TPU):
Characteristics: Flexible, abrasion-resistant, good chemical resistance.
Applications: Flexible tubing, seals, gaskets, phone cases, medical devices.
Integral Skin Polyurethane:
Characteristics: Soft, flexible outer skin with a rigid core, excellent surface finish.
Applications: Automotive interior components, consumer goods with textured finishes.
Polyurea:
Characteristics: Fast-curing, durable, excellent chemical and impact resistance.
Applications: Coatings, linings, protective layers for industrial equipment, and infrastructure.
Clear Polyurethane:
Characteristics: Transparent, good optical properties, UV resistance.
Applications: Lenses, light covers, display panels.
Bio-Based Polyurethane:
Characteristics: Derived from renewable resources, reduced environmental impact.
Applications: Environmentally friendly consumer goods, packaging, components.
Processing Considerations
Processing Considerations in Reaction Injection Molding (RIM):
Material Mixing: Accurate mixing of polyols and isocyanates is critical to achieving consistent part properties. Properly calibrated mixing equipment ensures the correct ratios are maintained.
Mold Design: Mold design must account for the chemical reaction and heat generation during curing. Adequate venting and cooling systems are essential.
Curing Time: The time required for the chemical reaction and curing affects cycle time. Balancing curing time with production efficiency is important.
Part Design: Complex part geometries can be achieved, but design considerations should account for mold release, uniform material flow, and prevention of air entrapment.
Surface Finish: Mold surface quality affects the final part's appearance. Mold polishing and texturing may be required for desired surface finishes.
