In the realm of metal surface finishing, chemical etching stands out as a technique combining art and science. This process, also known as photochemical machining or chemical milling, revolutionizes how industries approach the task of shaping and patterning metal surfaces. Let's delve into the intricate world of chemical etching, a method revered for its precision, versatility, and efficiency.
What is Chemical Etching？

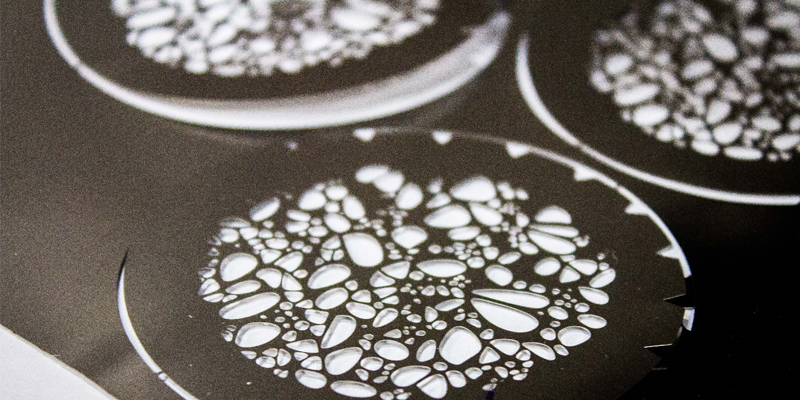

Chemical Etching, also known as photochemical machining or chemical milling, is a precise and tightly controlled corrosion process used to produce complex metal components with fine detail. This process is particularly useful for creating intricate designs, patterns, or text on metal surfaces. It's widely used in various industries, including electronics, aerospace, medical, and automotive.

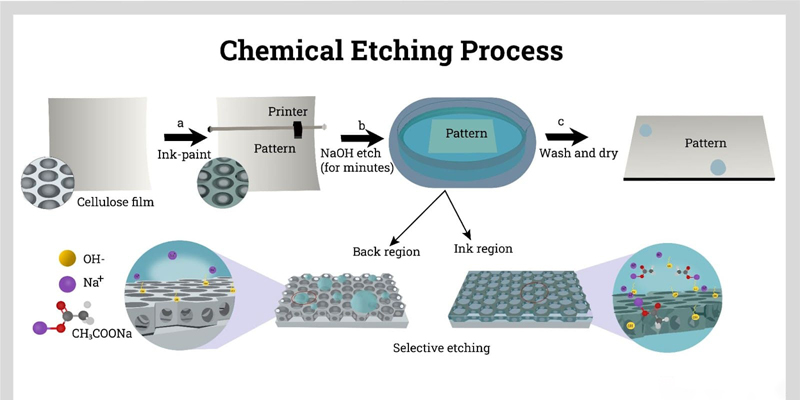

The Process of Chemical Etching:
Chemical etching begins with selecting a suitable metal, such as stainless steel, copper, aluminum, or brass. The metal is then cleaned to eliminate surface contaminants. A light-sensitive photoresist is applied, followed by exposure to UV light through a photomask, which imprints the desired pattern. The unexposed photoresist is washed away, and the metal is subjected to etchants like ferric chloride or nitric acid, dissolving unprotected areas. Finally, the remaining photoresist is stripped, unveiling the etched design.
Process Overview
Material Selection: Typically, materials like stainless steel, copper, aluminum, and brass are used.
Cleaning: The metal sheet is cleaned to remove any contaminants that could interfere with the etching process.
Lamination: A photoresist, a light-sensitive polymer, is applied to the metal surface.

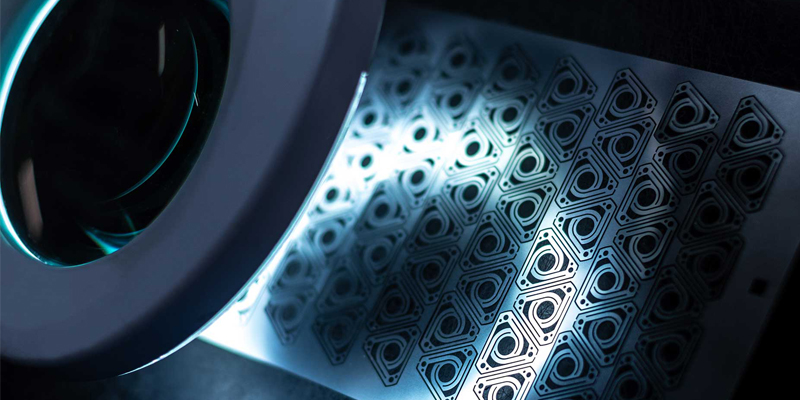

Exposure: The metal is exposed to UV light through a photomask, which hardens the photoresist on the areas that are not to be etched.
Development: The unexposed photoresist is then washed away, revealing the metal areas to be etched.
Etching: The metal sheet is exposed to chemical etchants (like ferric chloride or nitric acid) which dissolve the unprotected metal areas.
Stripping: The remaining photoresist is removed, revealing the etched design.
Chemical etching, also known as photochemical machining or chemical milling, offers several significant benefits as a metal surface finishing technique:
High Precision and Accuracy: Chemical etching allows for the production of extremely precise and intricate designs that might be difficult or impossible to achieve with traditional mechanical processes. It can maintain tight tolerances and reproduce complex patterns with great accuracy.
No Mechanical Stress or Deformation: Unlike mechanical machining methods, chemical etching does not introduce stresses or deformations into the material. This is particularly important for delicate or thin materials that could be warped or damaged by physical machining methods.
Material Versatility: This process can be applied to a wide range of metals and alloys, including stainless steel, copper, brass, aluminum, and more. It's suitable for materials that are difficult to machine using other methods.
Surface Integrity: Chemical etching leaves the material's surface properties unchanged, maintaining its original strength and hardness. This is crucial in applications where maintaining the integrity of the material is essential, such as in aerospace or medical devices.
Complexity Without Additional Cost: The complexity of the design does not significantly affect the cost. Whether the design is simple or intricate, the process remains essentially the same, making it cost-effective for producing detailed parts.
Tooling Flexibility and Rapid Prototyping: The tooling used in chemical etching, primarily the photomask, can be quickly and inexpensively produced and modified. This makes it ideal for prototyping and short production runs where changes might be frequent.
Scalability: The process is easily scalable from prototype to full production, without significant changes in the production setup or a substantial increase in cost.
Consistent Reproducibility: Chemical etching allows for the production of multiple parts that are consistent and uniform, which is particularly important in high-volume manufacturing.
Fine Feature Capabilities: It can produce very fine features and small dimensions that would be challenging to achieve with other methods.
Rapid Prototyping: Quick turnaround from design to finished product.
These benefits make chemical etching a preferred method in industries requiring high precision and quality, such as electronics, aerospace, medical device manufacturing, and more. The process's ability to produce complex shapes with minimal impact on material properties is a significant advantage over traditional metalworking techniques.
Chemical Etching Application Materials
Metals: Stainless steel, copper, brass, aluminum, and other alloys.
Photoresist: A light-sensitive polymer layer applied to the metal surface.
Developers: Solutions that remove unexposed photoresist.
Etchants: Chemical solutions like ferric chloride or nitric acid to dissolve unprotected metal areas.
Cleaning Agents: For pre- and post-etching cleaning.
Photomasks: A mask with the desired pattern, used during the exposure to UV light.
Chemical Etching Applications Industries
Electronic Components: Producing intricate parts like circuit boards, shields, and connectors.
Decorative Items: Artistic patterns on metals for jewelry, nameplates, and decorative panels.
Mechanical Parts: Precision components for aerospace, automotive, and medical devices.
Limitations
Material Wastage: The etching process involves material removal, which can be a concern for larger or thicker parts.
Control of Depth: Achieving uniform depth can be challenging in some complex designs.
